DYNO TUNING / MAZDA
Mazda Tuning Melbourne

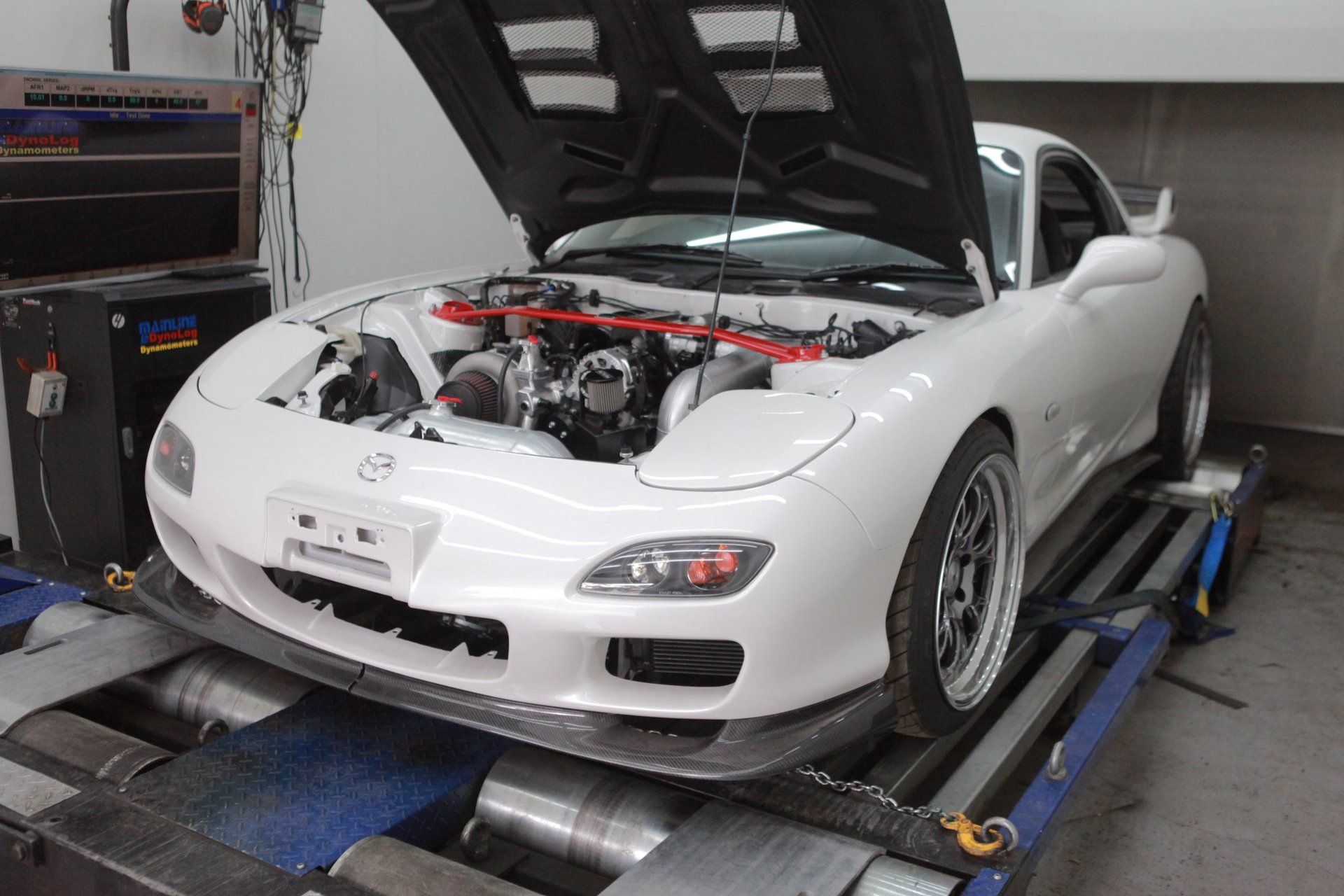

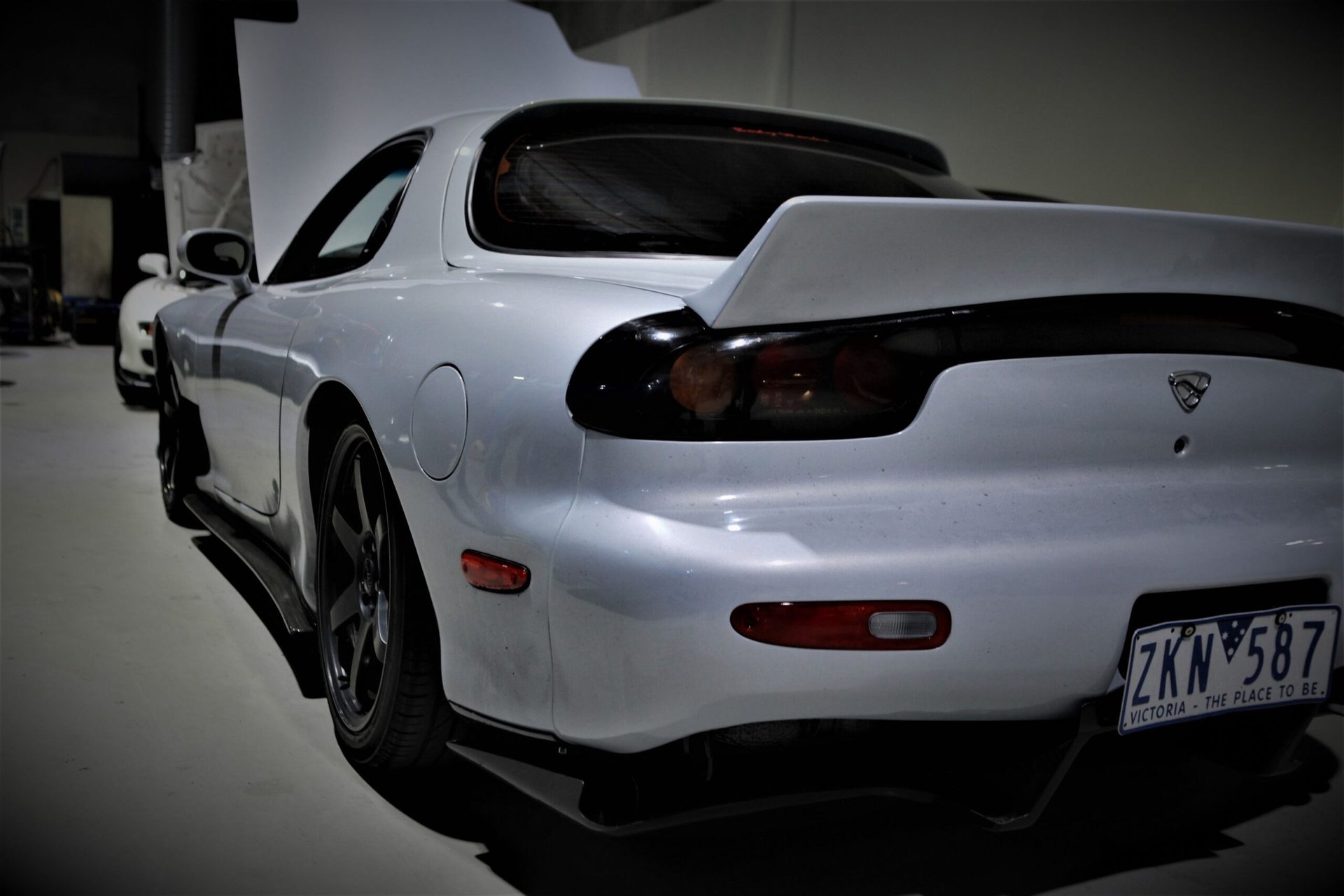

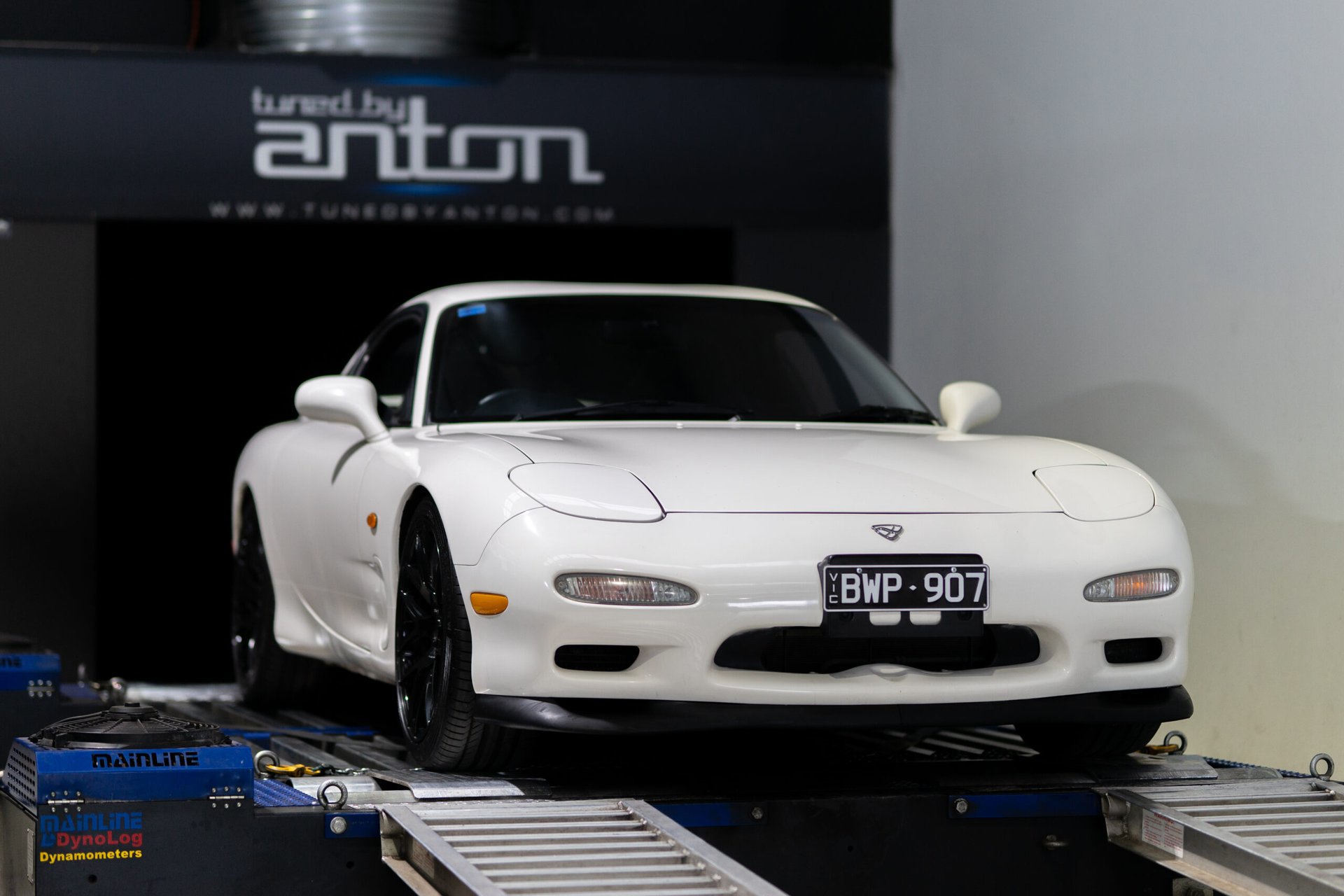

From the MPS 3 and MPS 6 to the MX-5, RX-7 and RX-8 — our tuners have deep Mazda dyno history. Wankel, turbo four and naturally aspirated platforms all dialled on our Mainline dyno.
— Mazda Dyno Results
Your Mazda Dyno Tuning Specialists.
— Models We Tune
Popular Mazda Models We Tune.
Mazda MPS platforms and performance diesel tunes — we have hands-on dyno history with every Mazda model listed here.
GET A QUOTE →— Platform Overview
Tuning the Mazda Platform.
Mazda's SkyActiv-G naturally aspirated engines — in the Mazda3, Mazda6, CX-5, and MX-5 — run some of the highest compression ratios of any production petrol engine, reaching 14:1 in the 2.0L and 13:1 in the 2.5L. This design priority (thermal efficiency and fuel economy) means ECU remapping alone produces modest power gains — typically 8–12% improvement in throttle response and peak power rather than the 20–30% available on turbocharged platforms. The value of tuning NA SkyActiv engines is in calibration quality and driving feel rather than big power numbers.
The SkyActiv-T turbocharged engine (2.5T in the CX-5, CX-9, and Mazda6 Atenza) is a more rewarding platform. It uses a twin-scroll turbocharger with direct injection, and the factory calibration applies conservative boost and fuelling limits for broad market fuel quality and durability targets. A proper ECU remap on the 2.5T raises boost, corrects the fuel and ignition curve, and delivers a noticeably more linear power delivery — the improvement is particularly felt in the 2000–4000 RPM midrange where these SUVs spend most of their time.

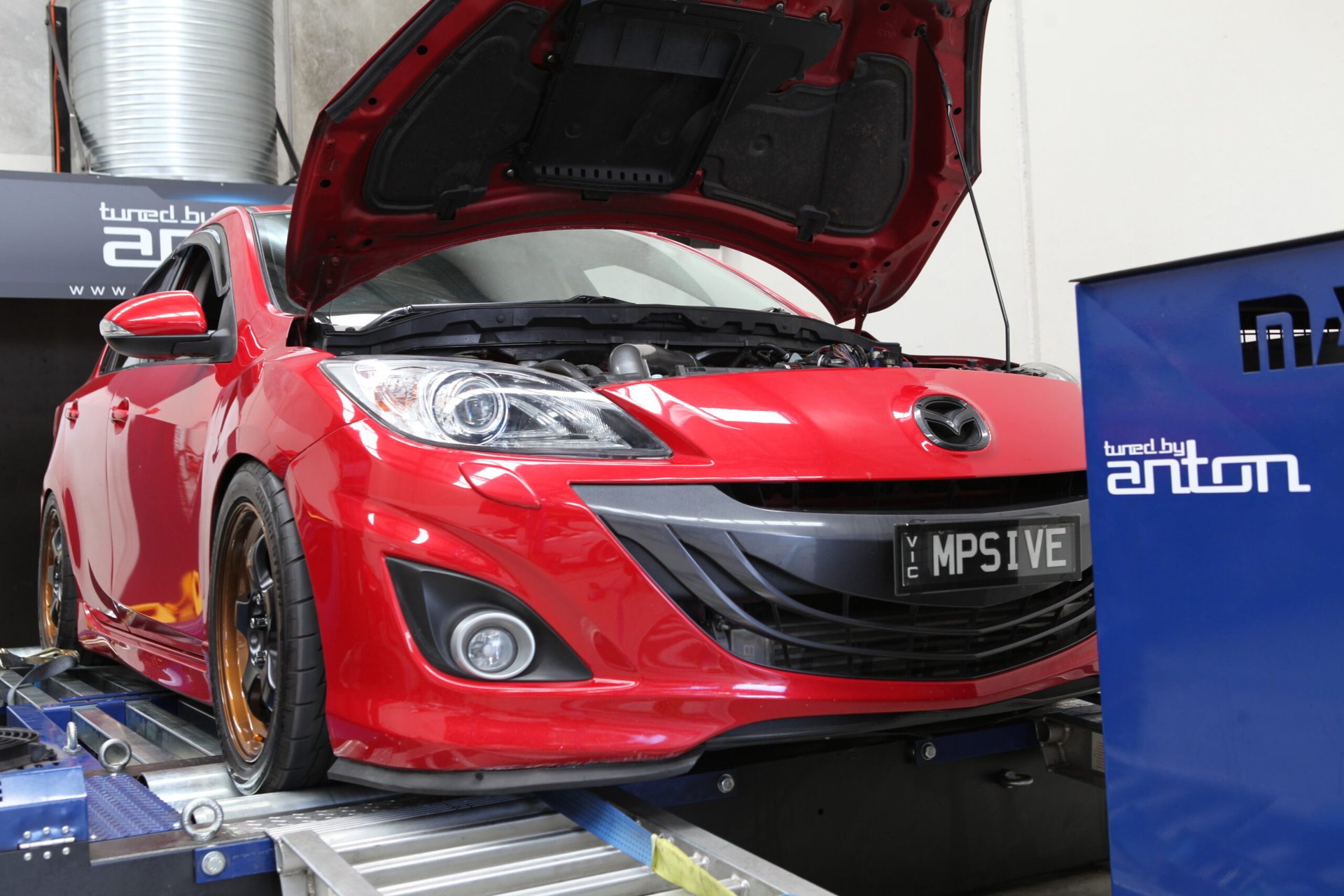

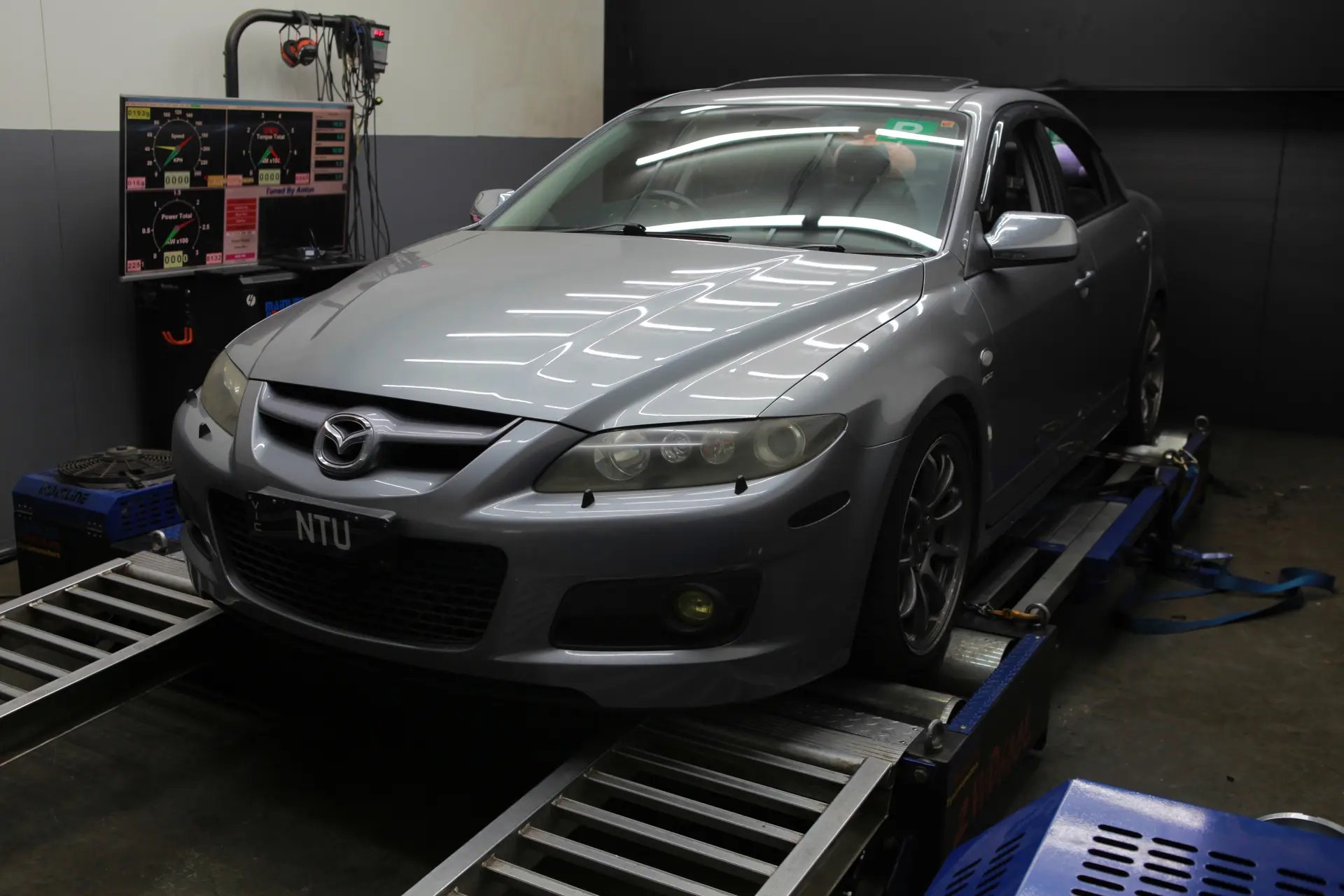

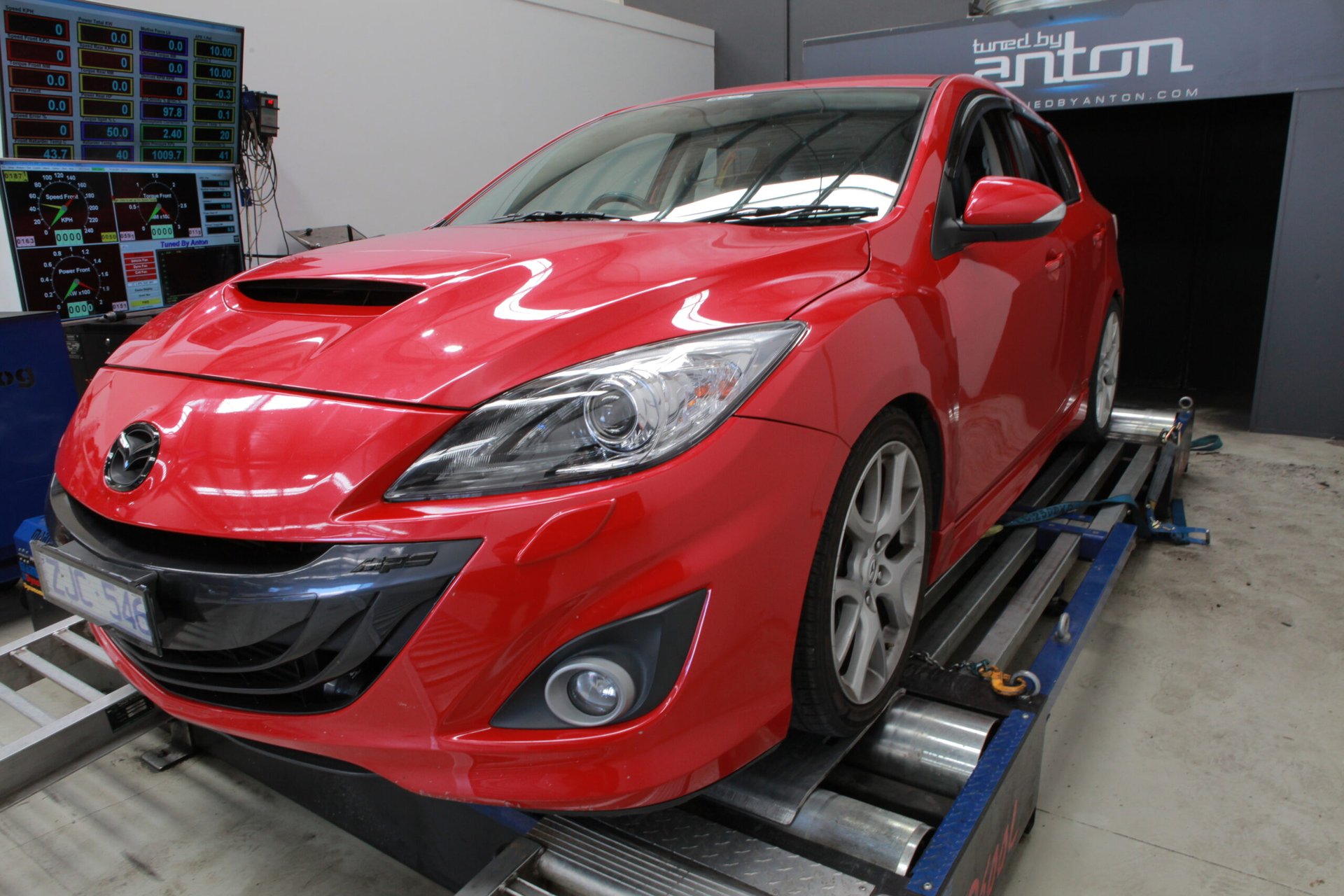

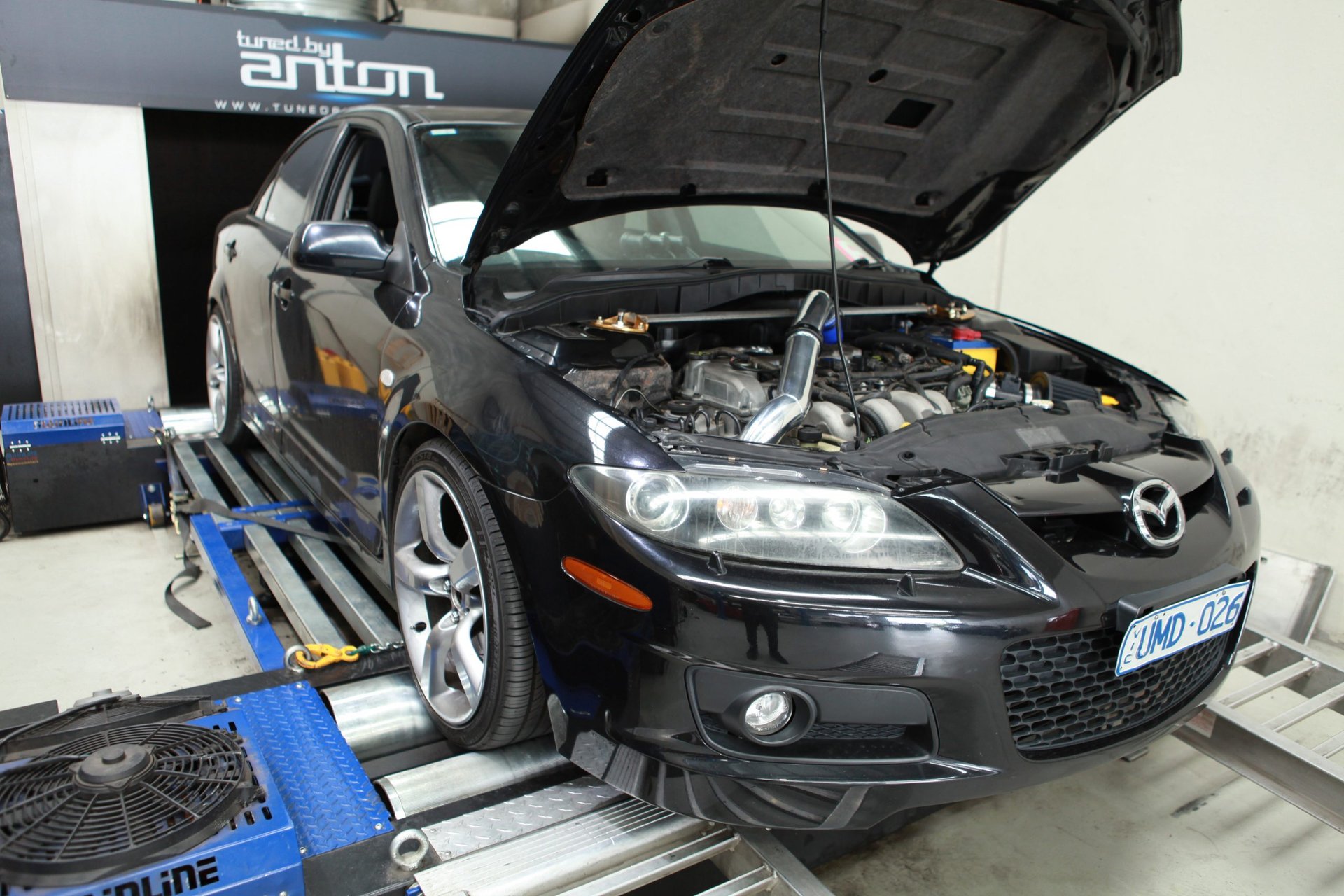

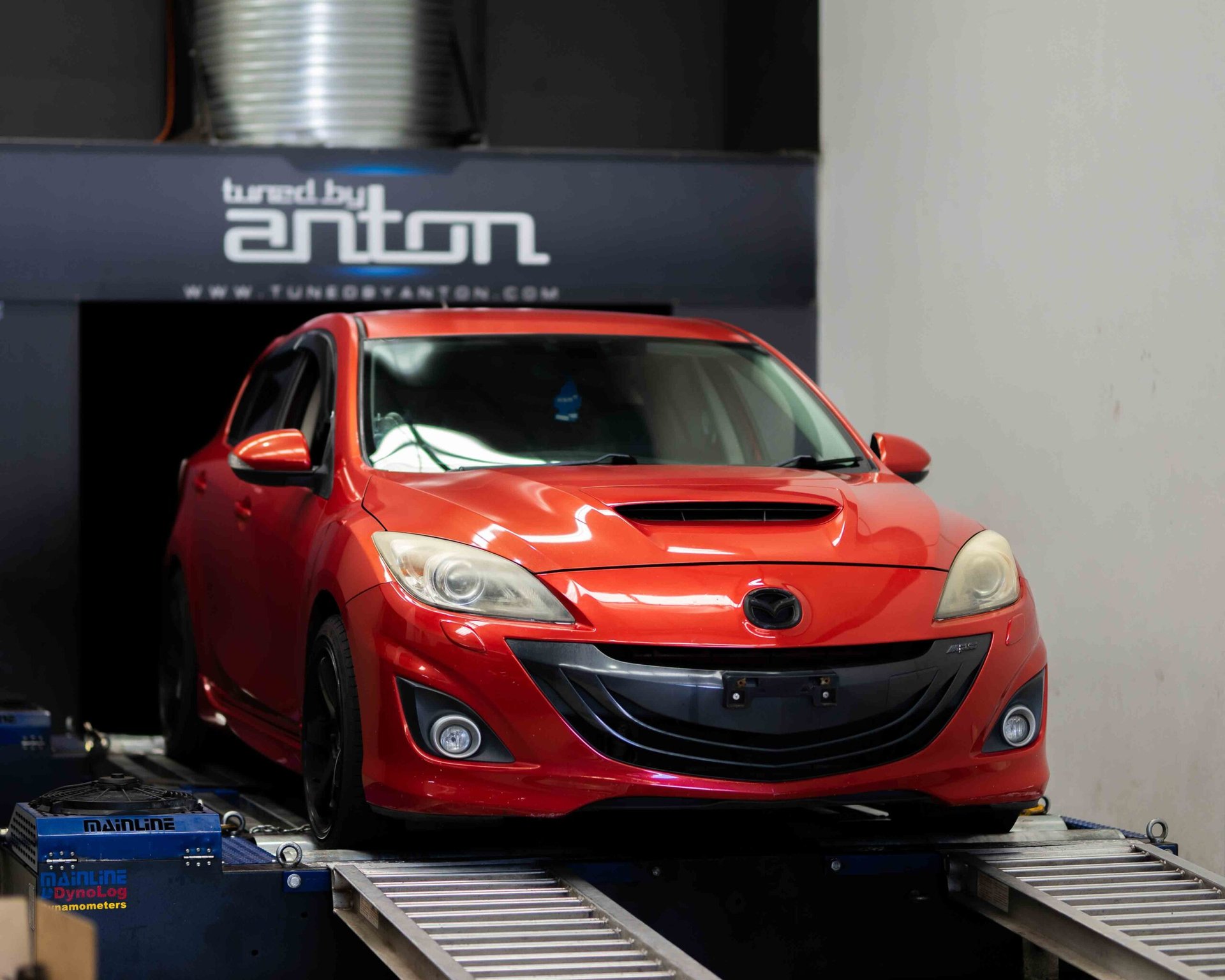

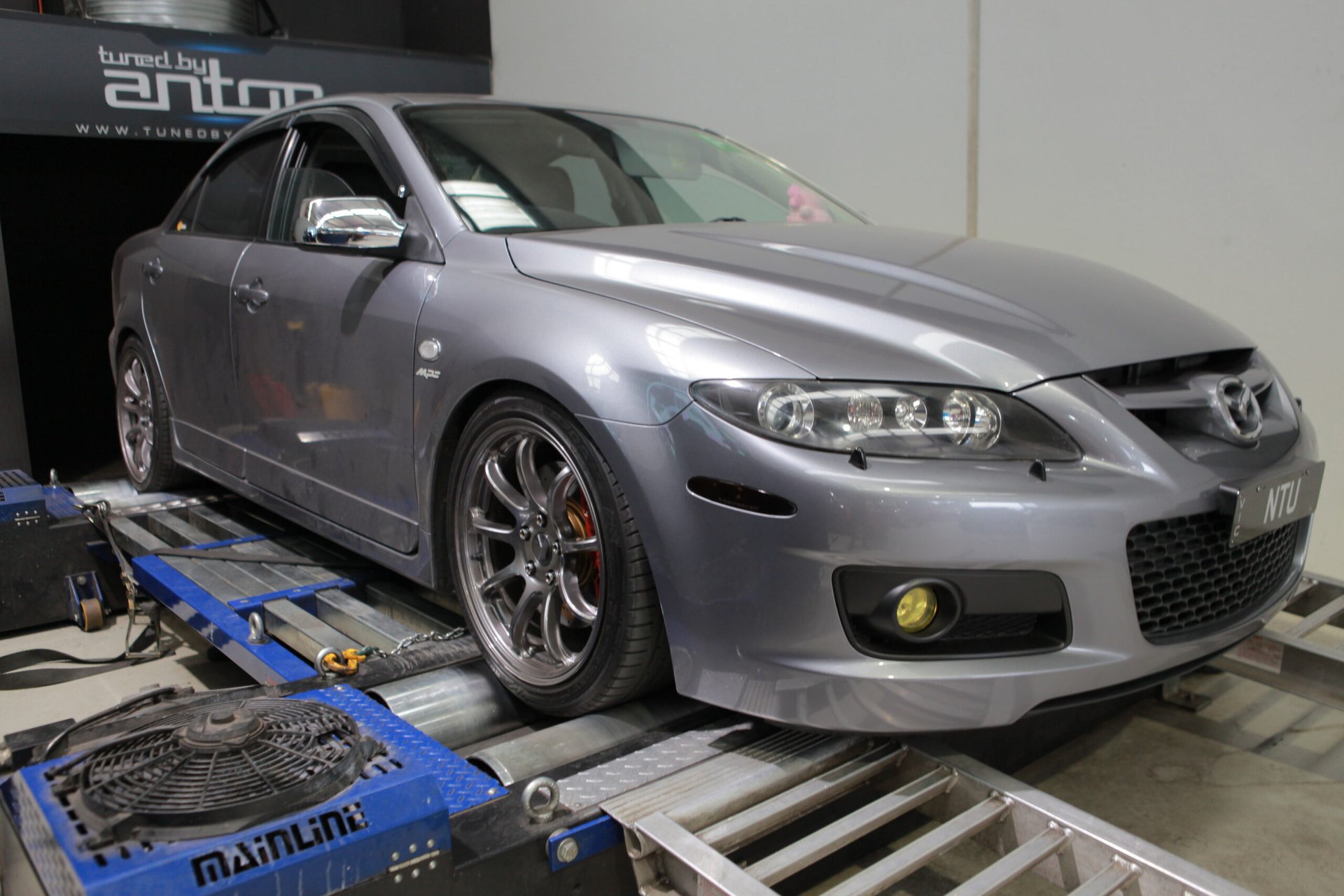

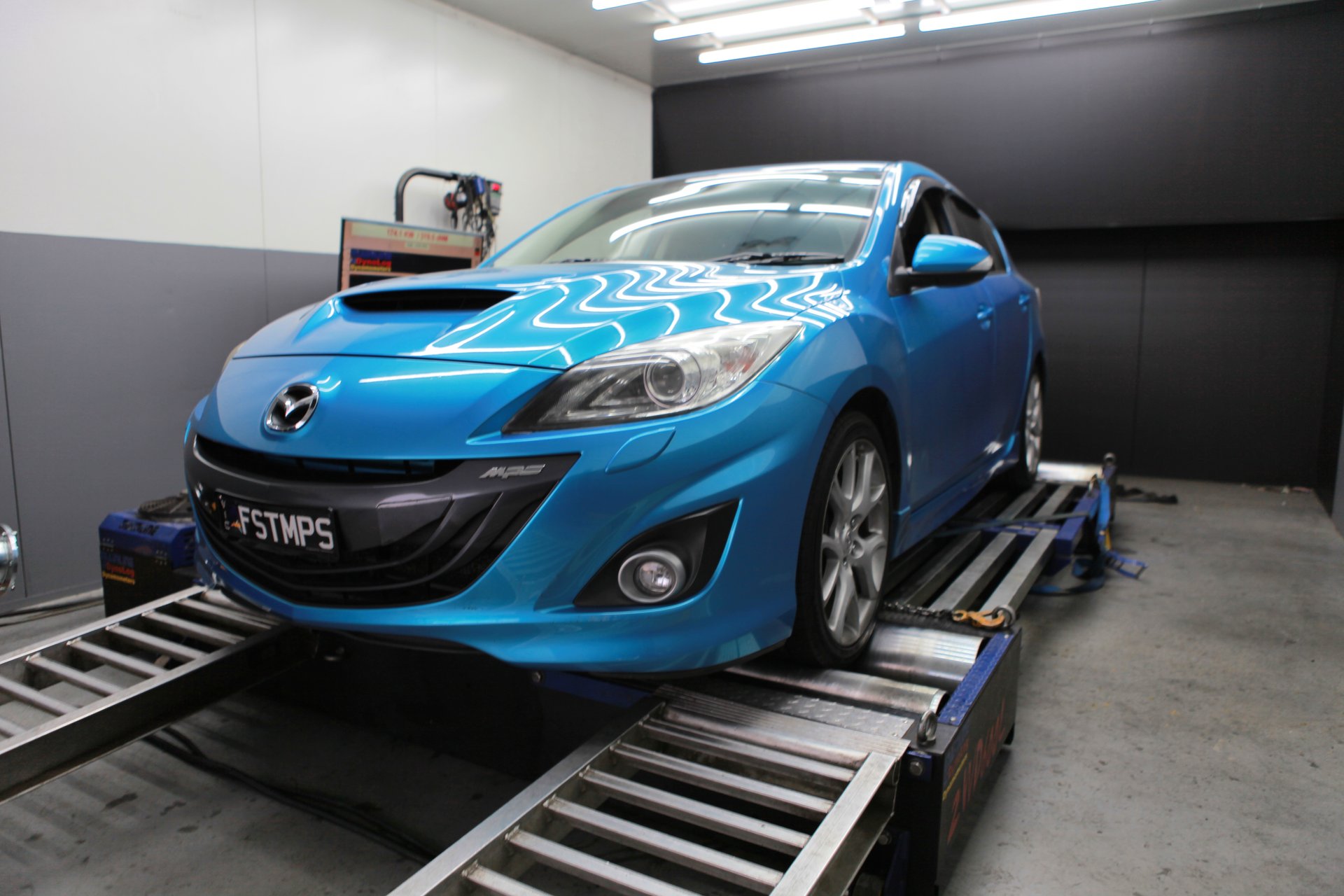

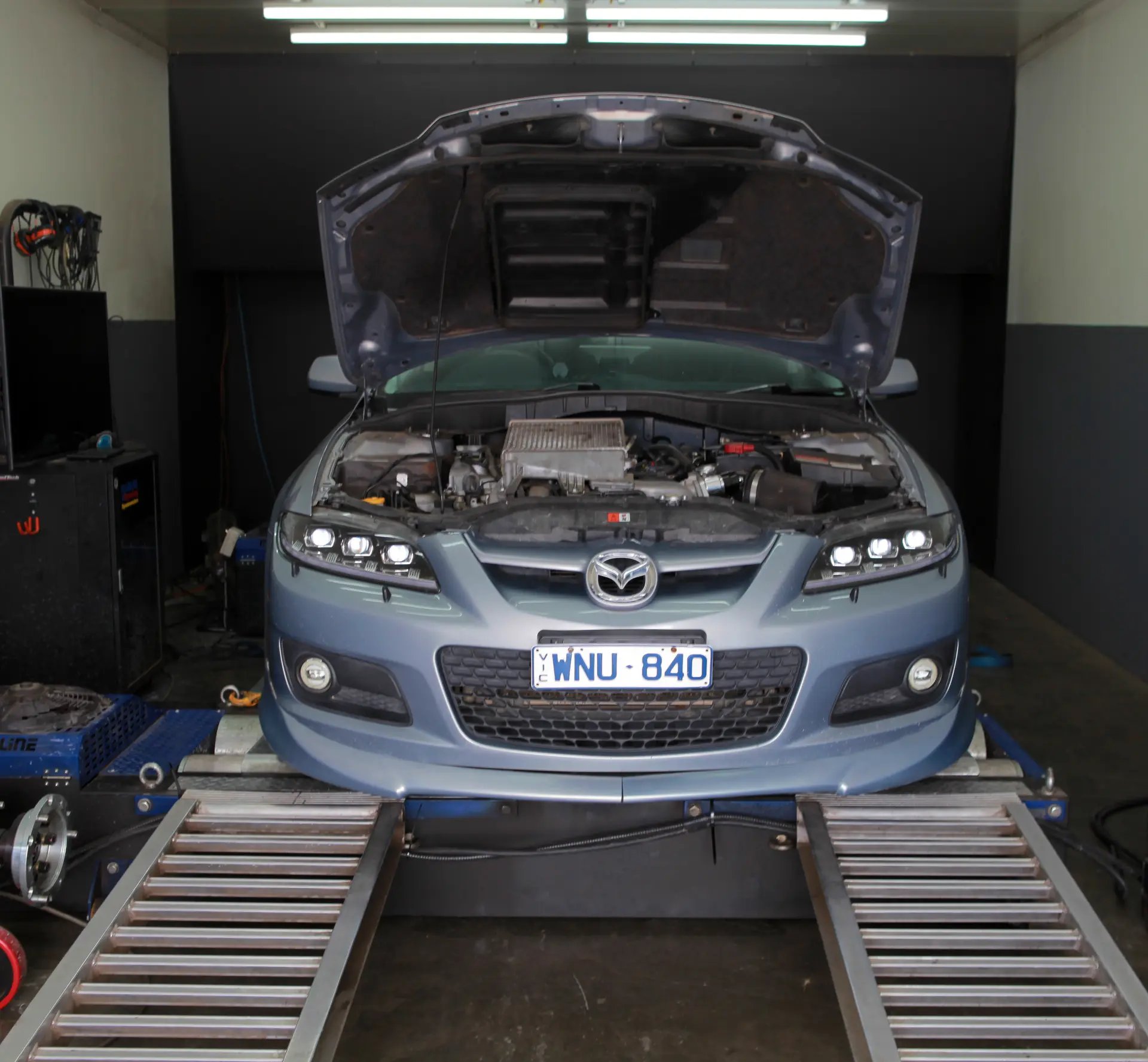

The Mazdaspeed 3 and MPS 6 use the 2.3L MZR turbocharged four-cylinder — a platform with a legitimate tuning history and meaningful headroom beyond factory output. The MPS platform on an upgraded turbo and E85 calibration is capable of well over 250kW at the wheels. The MX-5 (ND, 2015-present) with its 2.0L SkyActiv-G has limited ECU gains but a large aftermarket for supercharger and turbo kits — we develop custom calibrations for these setups on the Mainline dyno.
— Typical At-Wheel Figures
Real Numbers. Mainline AWD.
At-wheel kW on 98 RON unless noted. Representative of results in our Epping workshop — your car may vary.
| Engine / Models | Factory | Stage 1 | Stage 2 |
|---|---|---|---|
L3-VDT / MZR 2.3T98 RON Mazdaspeed 3 BK/BL, MPS 6 GH | ~190 kW | ~238 kW | ~275 kW |
BorgWarner K04 turbo. Upgraded TMIC strongly recommended at Stage 2+. | |||
2.5T SkyActiv-T98 RON CX-5 KF turbo, CX-9, Mazda6 Atenza | ~165 kW | ~205 kW | ~232 kW |
Twin-scroll turbo. Midrange torque improvement most noticeable. Intake and intercooler at Stage 2. | |||
2.0L SkyActiv-G NA98 RON Mazda3 BP/BM, MX-5 ND, CX-3 | ~108 kW | ~118 kW | — |
High 14:1 compression — gains are modest. Tune improves throttle feel and response. Turbo kit path available for MX-5. | |||
2.2L SkyActiv-DDiesel CX-5 KF/KE, CX-9, Mazda6, BT-50 | ~125 kW | ~160 kW | — |
Twin-turbo diesel in most variants. Strong torque gains. BT-50 towing tune very popular. | |||
— Parts & Accessories
Mazda Tuning Parts & Accessories.
Mazda-specific performance hardware, sourced and fitted in-house.
Nexus Plug-in ECU - Nissan Skyline R32/R33/R34 GT-R + LSU4.9 Wideband Hardware Pack
Nexus Plug-in ECU - Nissan Skyline R32/R33/R34 GT-R

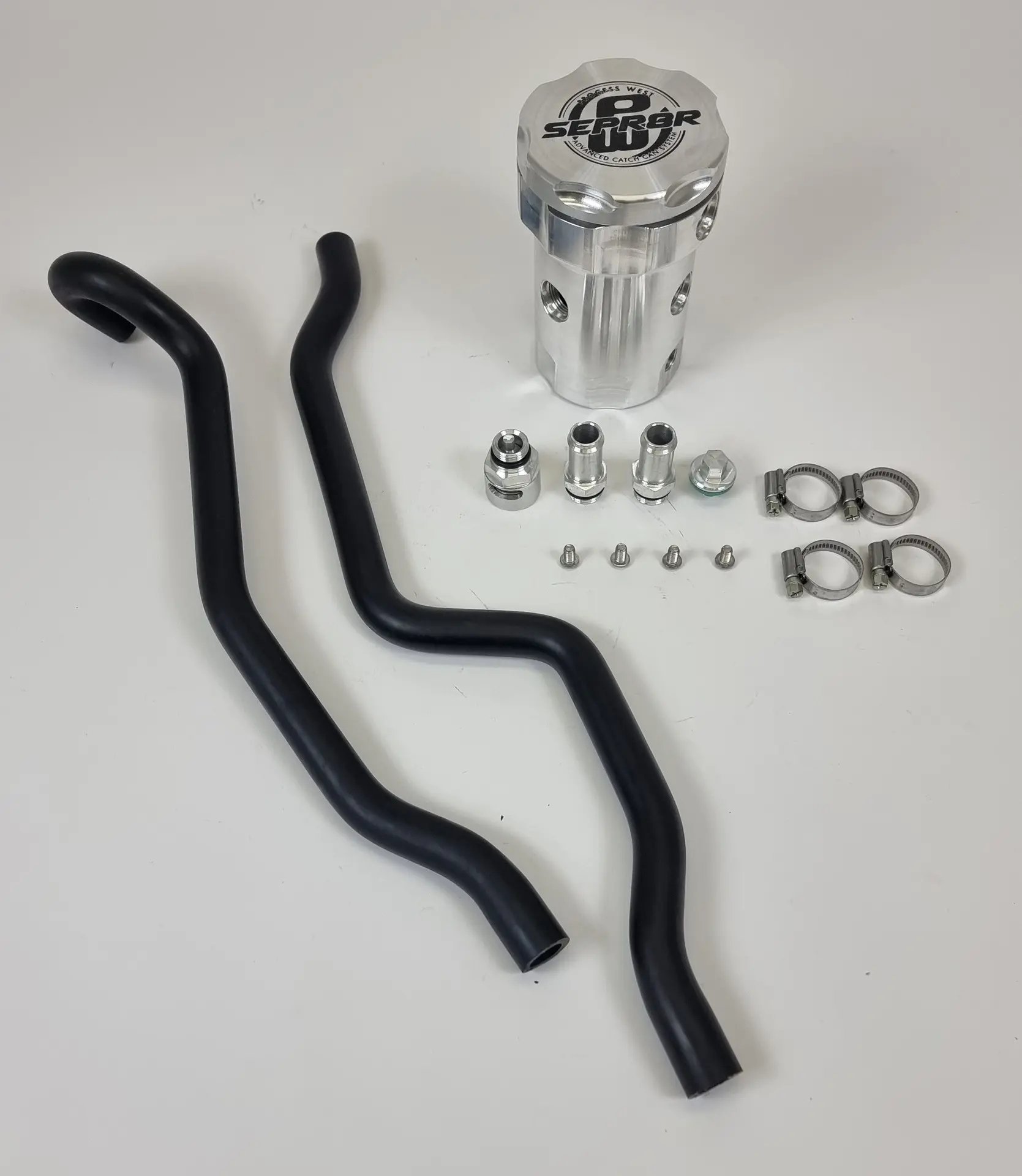

SEPR8R Air Oil Separator - 22+ Isuzu Dmax and 22+ Mazda BT50
Nexus S3 Plug 'n' Play Adapter Harness Kit - Nissan Skyline R32/R33/R34 GT-R

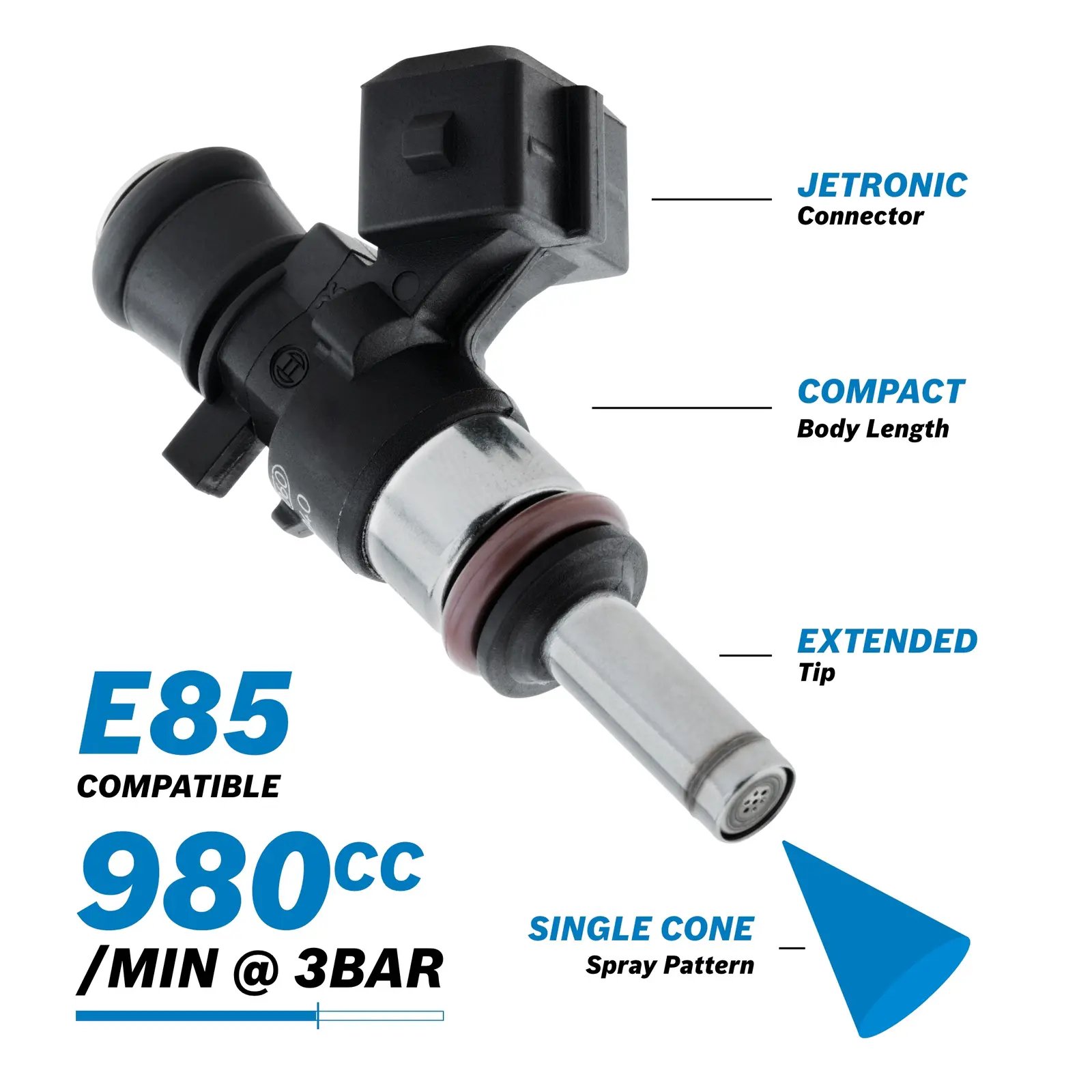

Bosch 980cc EV14 fuel injectors

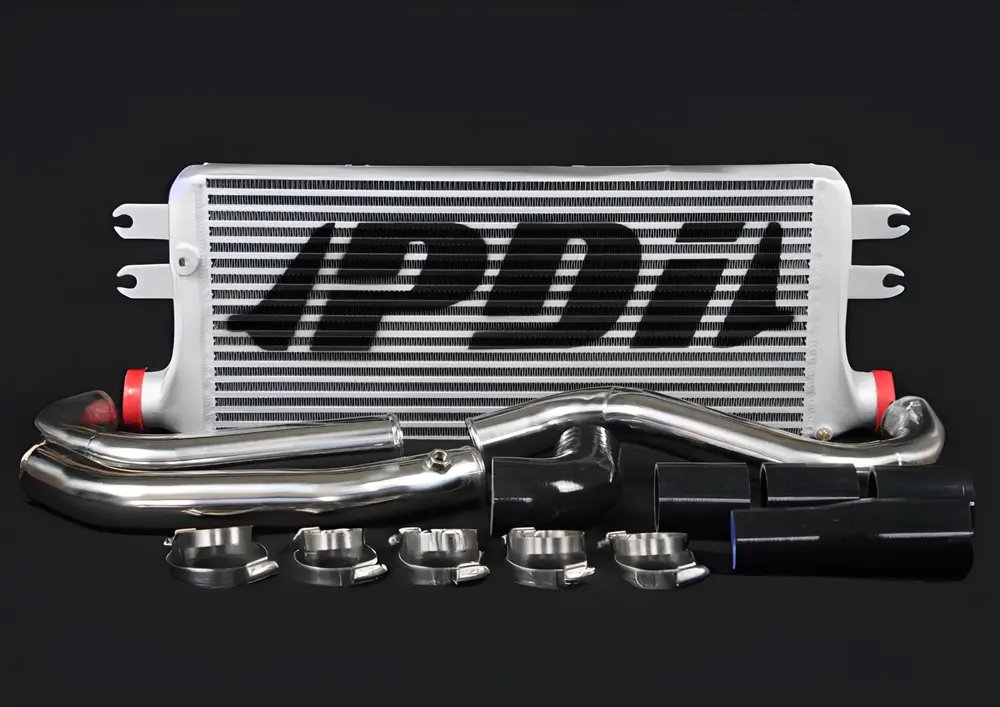

PDI Isuzu D-MAX / Mazda BT50 (2020+) & MU-X (2021+) Front Mount Intercooler Kit 4JJ3

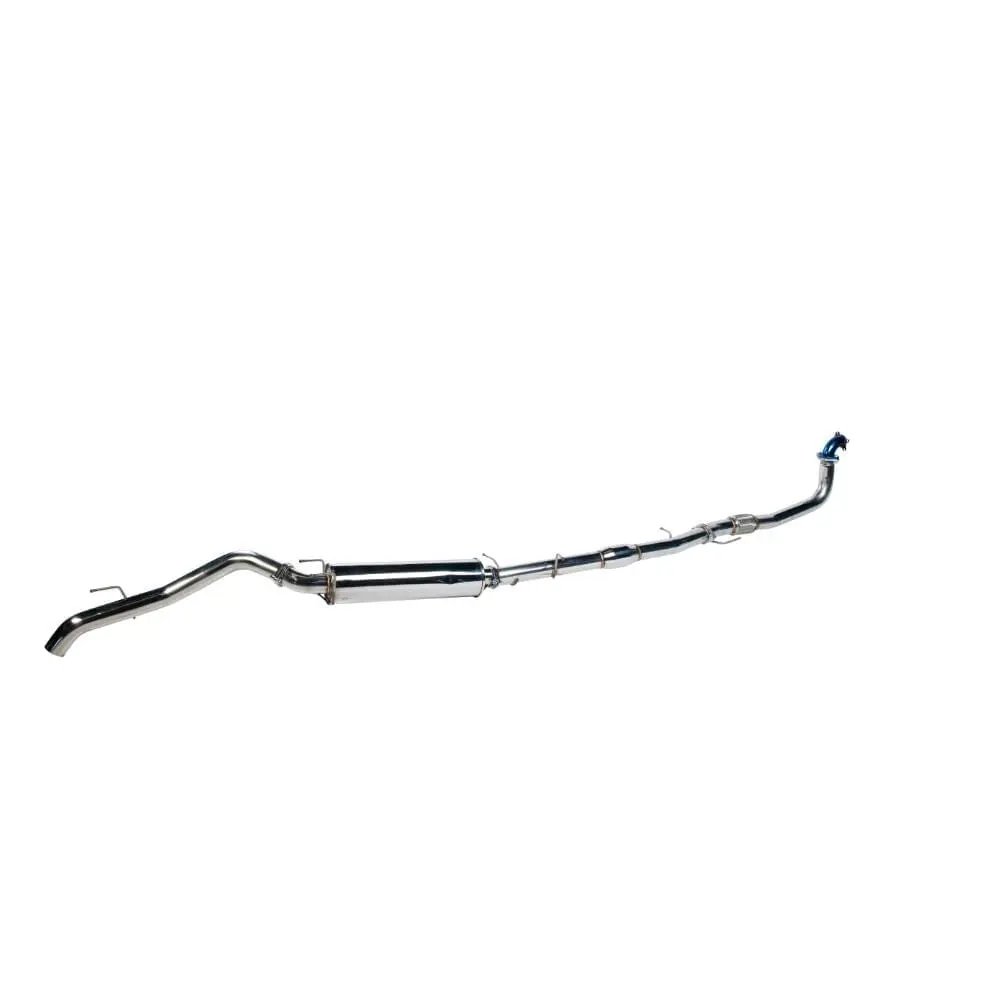

Torqit 3″ Turbo Back Exhaust: Performance Exhaust for 3.0L BT50

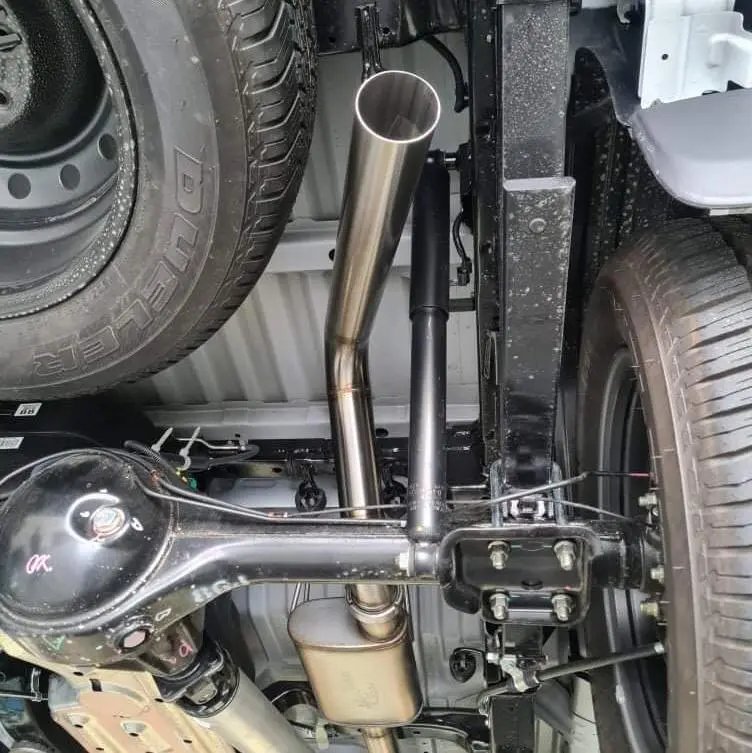

CRG Isuzu DMAX / Mazda BT50 MY21+ 3″ Turbo Back Stainless Steel Exhaust System
— Mazda Tuning FAQs
Common Questions.
Can you tune a naturally aspirated Mazda SkyActiv engine?
Yes, but the gains are modest compared to a turbocharged platform. SkyActiv-G NA engines run very high compression ratios (14:1) which leaves little room for ignition advance before knock becomes a risk on 98 RON. A Stage 1 ECU tune on a 2.0L SkyActiv-G adds approximately 10kW at the wheels and noticeably improves throttle response and rev limiter. For significant power gains on an MX-5 or Mazda3, a bolt-on turbo or supercharger kit combined with a custom dyno tune is the more rewarding path.
How much power can a Mazda CX-5 2.5T gain from a tune?
A stock CX-5 2.5T makes approximately 165kW at the wheels. A Stage 1 ECU remap takes this to around 200–210kW with improved mid-range torque delivery — the improvement is felt most strongly in the 2000–3500 RPM range where the CX-5 normally operates. A Stage 2 with a high-flow intake and intercooler upgrade adds a further 20–25kW and improves sustained power delivery. The subjective improvement in everyday driveability is more noticeable than the numbers suggest.
Is it worth tuning a Mazda MX-5 ND?
The MX-5 ND with the 2.0L SkyActiv-G gets limited power gains from ECU tuning alone — roughly 10kW from a stock 108kW base. The value is in throttle calibration improvement, a raised rev limit, and removing the factory speed limiter for track use. For genuine performance gains on an ND, a supercharger or turbo kit combined with a custom dyno tune is the recommended path. We develop calibrations for the popular Hard Dog, Flyin' Miata, and other turbo/supercharger setups on our Mainline dyno.
What does a Mazda diesel tune involve?
Mazda's SkyActiv-D 2.2L diesel (used in the CX-5, CX-9, Mazda6, and BT-50) and the older 3.2L five-cylinder diesel in the BT-50 both respond well to ECU remapping. The factory calibration is conservative for fuel quality variation and emissions compliance. A custom tune raises boost, adjusts injection timing and quantity, and raises the torque ceiling — particularly in the low-to-mid RPM range that matters most for towing. BT-50 diesel tunes are very popular in our workshop for owners who tow regularly.
Will tuning affect my Mazda fuel economy?
A properly calibrated ECU tune doesn't inherently worsen fuel economy — and in many cases improves it under light throttle conditions by improving combustion efficiency. The fuel economy impact depends entirely on how you drive after the tune. If you use the additional power available, consumption will increase. If you drive with the same throttle inputs you used before the tune, the car may actually use less fuel at light loads. Diesel tunes in particular often improve fuel economy for drivers with moderate throttle habits.
